Deskription :

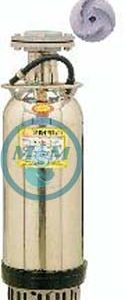

Pompa Celup Showfou Contractor KT-112N-232N-532H-732H-732H-1532H
KT (Made in Taiwan)
Features :
- Power : 1,2,3,5,7-1/2, 10, 15 HP
- Motor : IP68. 2 Poles
- Suction Cover and Impeller made of HCr (High Crome)
- Equipped with silicon carbide mechanical seal
50HZ Specifications :
| Type | Motor | Pump | Cable | Wt | ||||||
| Power | Phase | Volt | Bore | Max head | Max flow | |||||
| HP | kW | PH | V | Inch | mm | M | L/min | mm2xM | Kg | |
| KT-111N | 1 | 0.75 | 1 | 110 | 2″ | 50 | 13 | 300 | 2 x 6 | 2 |
| KT-112N | 220 | |||||||||
| KT-132N | 3 | 220-440 | ||||||||
| KT-212N | 2 | 1.5 | 1 | 220 | 2″ | 50 | 22 | 450 | 3,5 x 10 | 41 |
| KT-232N | 3 | 220-440 | 37 | |||||||
| KT-212LN | 1 | 220 | 3″ | 80 | 16 | 650 | 41 | |||
| KT-232LN | 3 | 220-440 | 37 | |||||||
| KT-312H | 3 | 2.2 | 2 | 220 | 2″ | 50 | 24 | 400 | 3.5 x 10 | 52 |
| KT-332H | 3 | 220-440 | 47 | |||||||
| KT-312 | 1 | 220 | 3″ | 80 | 20 | 800 | 52 | |||
| KT-332 | 3 | 220-440 | 47 | |||||||
| KT-532H | 5 | 3.7 | 3 | 220-440 | 2″ | 50 | 26 | 600 | 3.5 x 10 | 49 |
| KT-532 | 3″ | 80 | 26 | 1100 | ||||||
| KT-532L | 4″ | 100 | 20 | 1400 | ||||||
| KT-732H | 7.5 | 5.5 | 3 | 220-440 | 3″ | 80 | 28 | 1000 | 5.5 x 10 | 77 |
| KT-732 | 4″ | 100 | 22 | 17000 | ||||||
| KT-1032H | 10 | 7.5 | 3 | 220-440 | 4″ | 100 | 37 | 2300 | 5.5 x 10 | 91 |
| KT-1032 | 6″ | 150 | 26 | 2200 | ||||||
| KT-1532H | 15 | 11 | 3 | 220-440 | 4″ | 100 | 43 | 1600 | 8 x 10 | 129 |
| KT-1532H | 6″ | 150 | 31 | 2600 | ||||||
